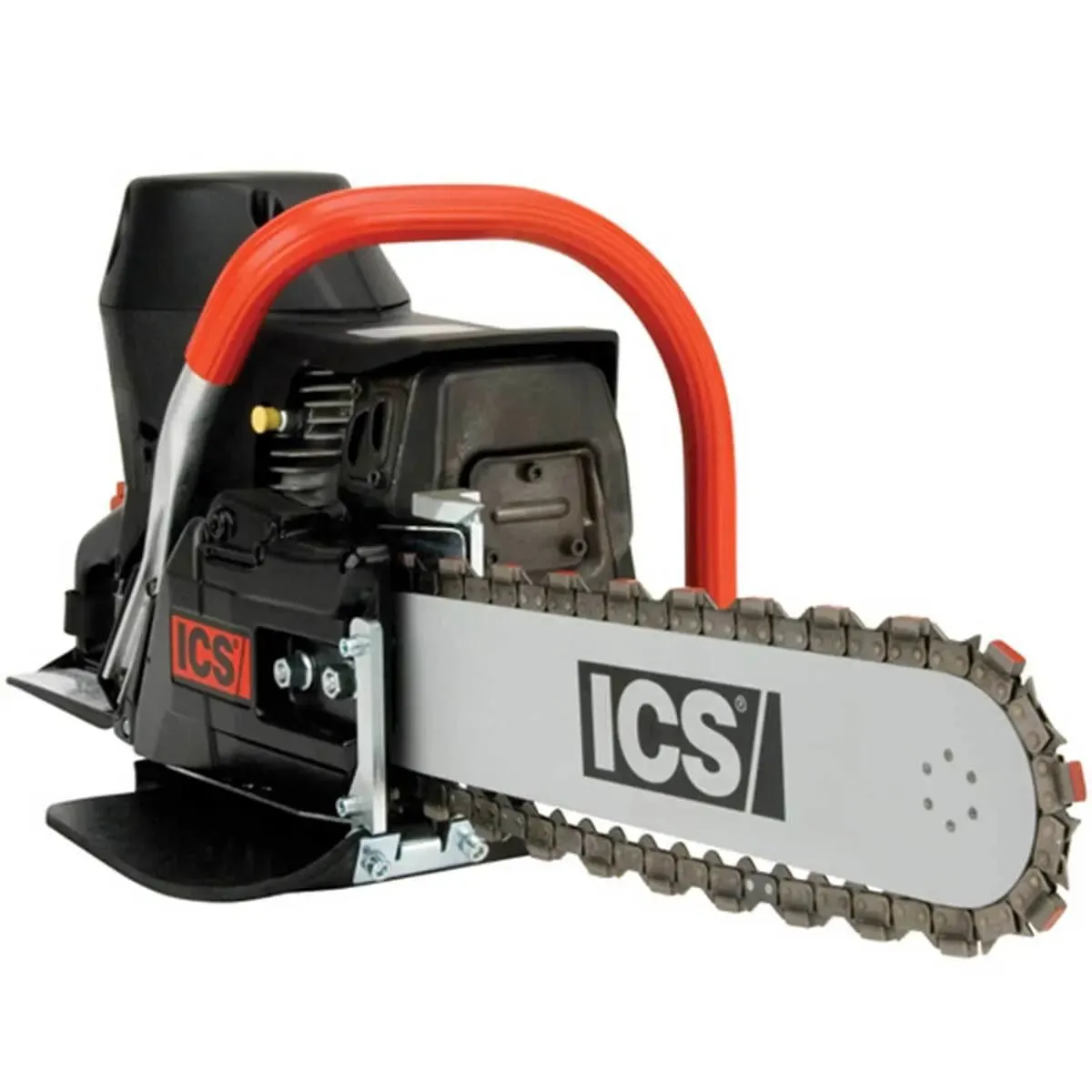

ICS 680ES Gas Powered Concrete Diamond Chainsaw
The ICS 680ES concrete chainsaw is a gas-powered concrete cutter ready to tackle the toughest jobs. It is one of the most reliable concrete chainsaws ICS has ever produced and is packed with innovative features, including an improved airflow design and a new multi-function lever to control choke, run, and stop functions.
Features
- Polyester air filter designed specifically for wet cutting
- Versatile lever controls throttle advance, choke, and run/stop modes
- Extended drive sprocket adapter for easy chain assembly
- Cuts square holes as small as 4" x 4"
- Stronger and more reliable than any gas saw ICS has ever produced
- Redesigned carburetor and ignition systems that work together to ensure easy starting, cooler operation, and dependable performance at nearly any elevation
- Improved airflow design keeps the engine much cooler, extending its life while improving efficiency
- Available with 12" (30 cm) and 14" (35 cm) guide bars and the entire line of TwinMAX™ diamond chains
- Great for irregularly shaped holes or concrete pipe, minimizing the patchwork associated with breaking and chipping
Versatile Concrete Chainsaw
- Deep cuts up to 14"
- Can cut square corners as small as 4" x 4"
- Single side access
- No power pack is required
- Safe operation without rotational "kickback"
- Wet-cut controls hazardous dust
What's Included?
- (1)ICS 680ES Concrete Chainsaw Power-head
- (1) ICS 12" or 14" Guide bar
- (1) ICS TwinMAX Chain
ICS 680ES Concrete Diamond Chainsaw Specifications |
|
Blade Size | 12 or 14-inch guide bars |
Power (Gas) | 5 hp / 3,700 W |
No Load RPM | 9,500 |
Depth of Cut | 14 inch |
Dimensions | 18 x 11.5 x 10 in |
Weight | 21 lbs (power unit only) |
Engine Type | 2-stoke, air-cooled |
Displacement | 76.5 cc (4.7 cu-in) |
Horsepower | 5 hp (3.7 kW) at 9,500 rpm |
Torque | 36.3 in-lbs (4.1 Nm) at 6,500 rpm |
Engine Speed | 11500 /- 500 rpm (max), 2800-3200 rpm (idle) |
Ignition | Special water-resistant electronic ignition |
Engine Speed | 11500 /- 500 rpm (max), 2800-3200 rpm (idle) |
Water Supply Requirement | 1 GPM @ 20 psi |
Fuel Mix Ratio | 50:1 (2%) gas-to-oil |
